Carl Haas Automobile Imports, Inc. sells the Oreca 07 LMP2, Oreca 05 LMP2 and the FLM09 car as well as related parts for all three. For all your Oreca Motorsport Company part needs, please call us at (847) 634-8200.

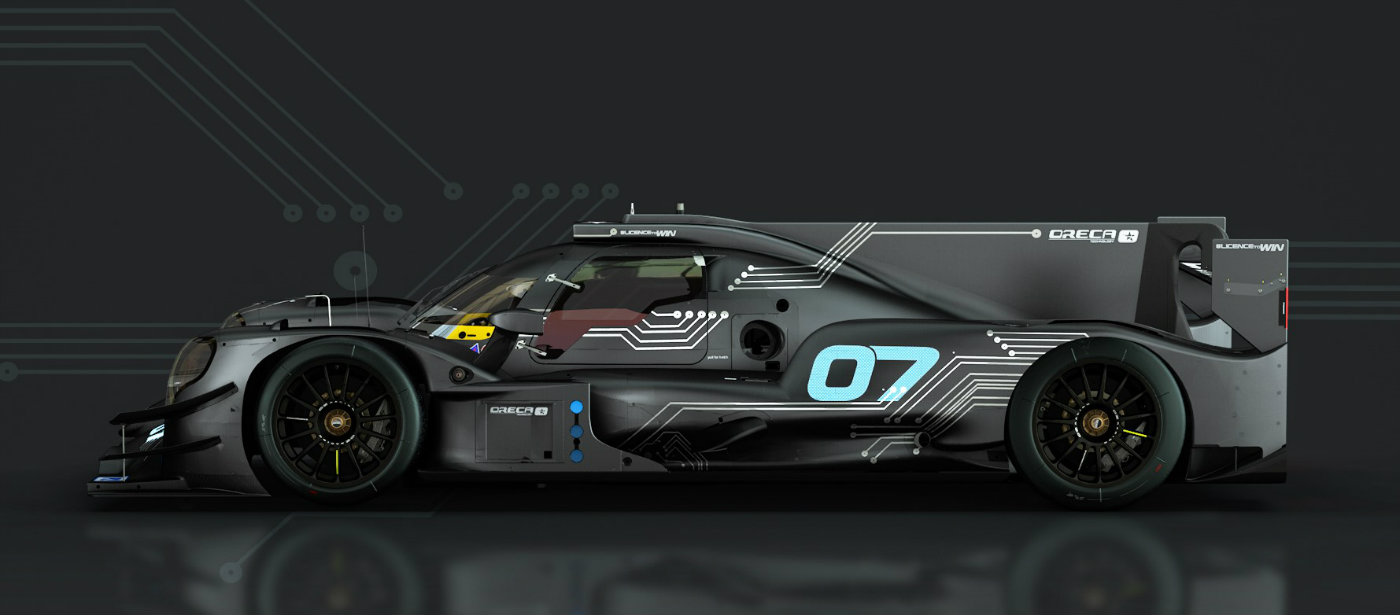

Oreca 07
LMP Car

The last-born from the Oreca Design Office. A skillful blend of expertise, know-how and daring in compliance with the new LMP2 regulations.

Specifications

Chassis
Monocoque: Carbon fibre & Honeycomb
Length: 4.745 mm
Width: 1.895 mm
Height: 1.045 mm
Front track: 1.570 mm
Rear track: 1.550 mm
Wheelbase: 3.005 mm
Weight: 930 kg

Engine
Gibson GK-428 : 4200 cc
Type: Normally aspirated 90 degree V8
Power output: 603 bhp
Max. revs: 9.000 RPM
Lubrication: dry sump / staged oil pump
Engine electronic control unit: Cosworth

Suspension & Tires
Suspensions: double wishbones with pushrod
Adjustable shocks, specifically developed by PKM
Tyres, according to the teams choice: FRONT : 30-68/R18 , REAR : 31-71/R18
Front rims: 12,5″x18″
Rear rims: 13″x18″
Gearbox
Supplier: Xtrac
Type: Six-speed sequential
Gear change: steering wheel-mounted paddles / Pneumatic paddle shift system
Speeds: 6 + reverse

Brakes
Ventilated carbon discs
Calipers: 6 monobloc

Safety Equipmnent
Six-point harness adapted for HANS system
Safety rubber fuel tank

Bodywork
Carbon / Kevlar light lamination

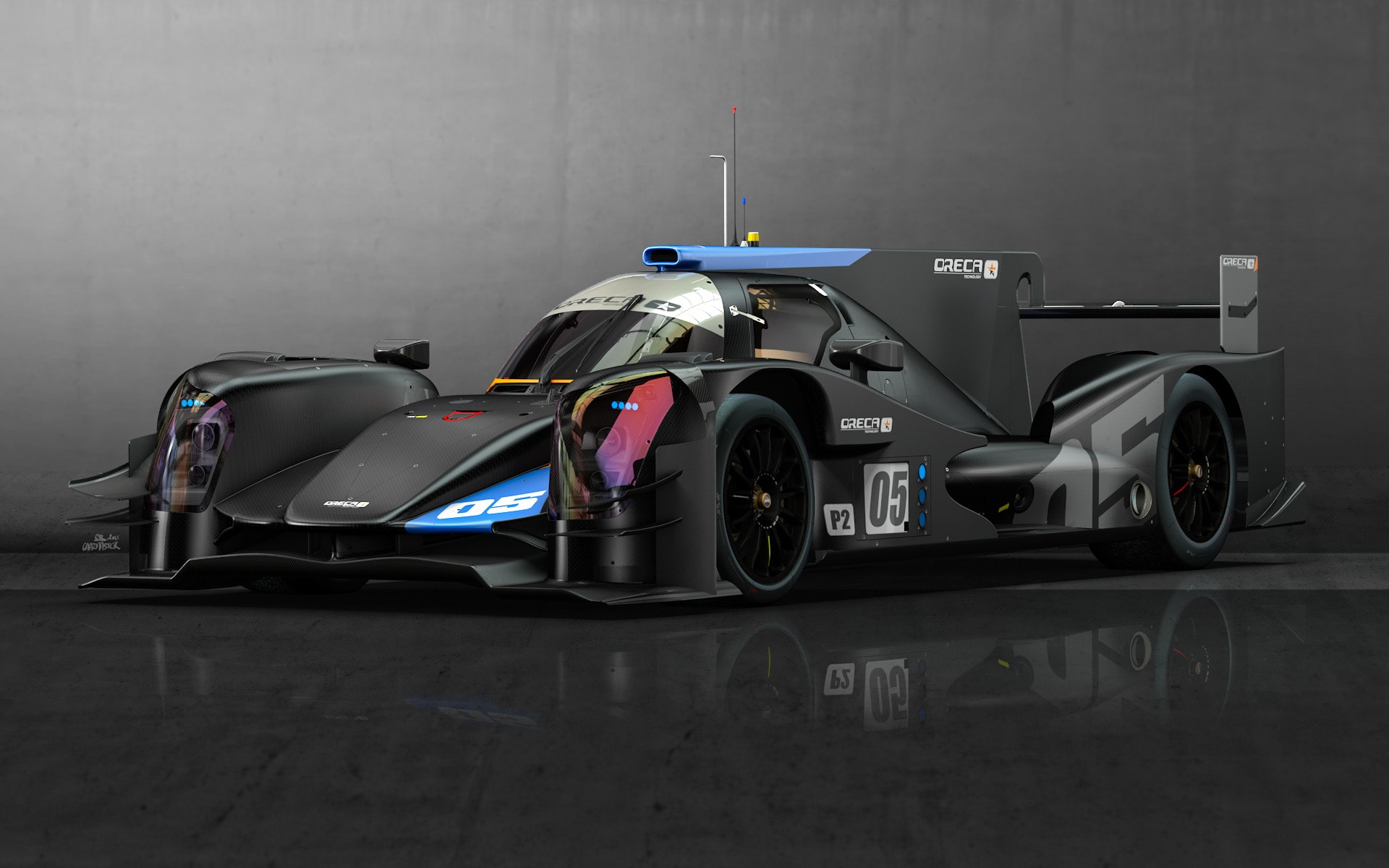

Oreca 05
LMP Car

The Oreca 05, a jewel of technology and precocity! Only three months separated his first shakedown in March 2015, from his historic victory at the 24 Hours of Le Mans, with the Asian team KCMG!

Specifications

Chassis
Monocoque: Carbonfibre & Honeycomb
Length: 4.640 mm
Width: 1.990 mm
Height: 1.045 mm
Front track: 1.570 mm
Rear track: 1.550 mm
Wheelbase: 2.950 mm
Weight: about 900 kg
Suspensions: double wishbones with pushrod
Tyres: Front 30-65/R18, Rear 31-71/R18
Front rims: 12,5″x18″
Rear rims: 13″x18″

Engine
Customer choice
Power output: about 490 bhp
Torque: about 55 Kg.m
Max. revs: depending on the engine
Lubrication: dry sump / staged oil pump
Engine electronic control unit: varies
Gearbox
Supplier: Xtrac
Type: Six-speed sequential
Gear change: steering wheel-mounted paddles / Pneumatic paddle shift system
Speeds: 6 + reverse

Brakes
Ventilated carbon discs
Calipers: Brembo

Safety Equipmnent
Six-point harness adapted for HANS system
Safety rubber fuel tank

Bodywork
Carbon / Kevlar light lamination

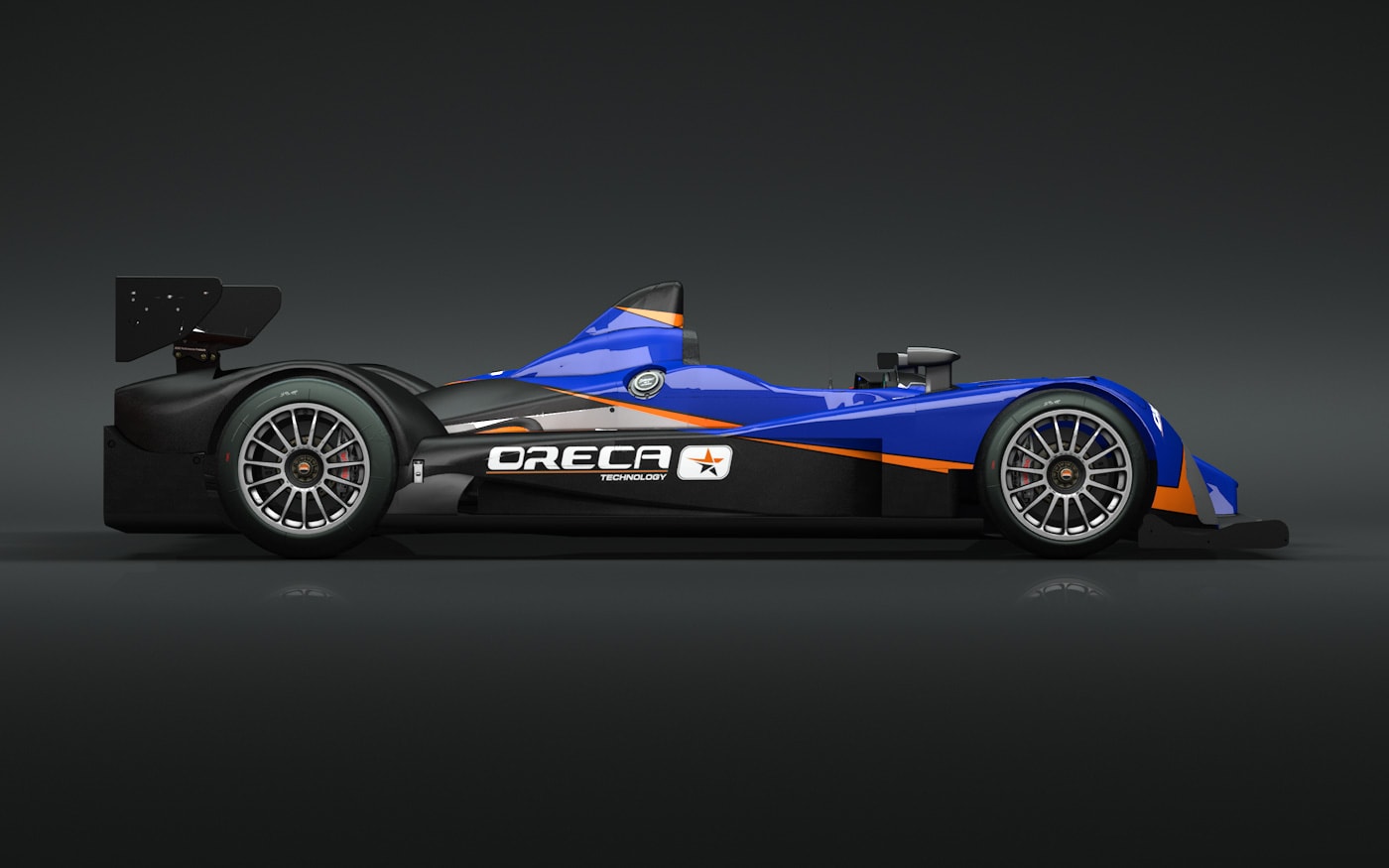

Oreca FLM-09
LMP Car

A true formula for access to endurance, the FLM09 has initiated many vocations for this sport for at lot of teams around the world.

Specifications

Chassis
Monocoque: Carbon fibre & Honeycomb
Length: 4.600 mm
Width: 1.990 mm
Height: 1.025 mm
Front track: 1.647 mm
Rear track: 1.609 mm
Wheelbase: 2.870 mm
Weight: 900 kg

Engine
V8 GM based
Power: around 430 bhp
Torque: around 630 Nm
Max. revs: around 6000 rpm
Lubrication : dry sump
Electronic management system: Magneti Marelli

Suspension & Tires
Double steel wisbones with pushrod
Front tyres : 12,5″x18″
Rear tyres : 13″x18″
Gearbox
Supplier: Xtrac
Type: sequential
Gear change: steering wheel-mounted paddles
Speeds: 6 + reverse

Brakes
Make: Brembo
Front discs: Brembo 380 mm x 37
Rear discs: Brembo 355 mm x 37 mm
Calipers: Brembo monobloc 6 pistons
Pads: Brembo

Safety Equipmnent
Six-point harness adapted for HANS system
Flexible fuel tank (75L)

Bodywork
Carbon / Kevlar light lamination
